Ergonomic Research Stereo Microscopes

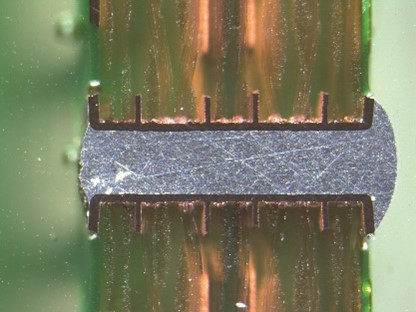

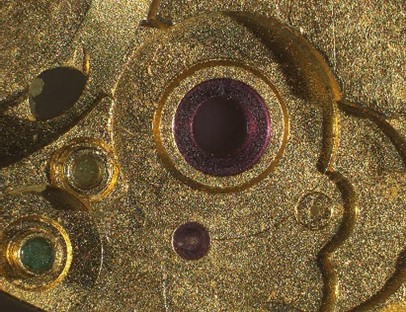

Reproducible results are crucial in imaging, especially when capturing intricate details. Unleash the power of exceptional optics to achieve unparalleled image quality, rich in detail, contrast, and undistorted color fidelity, combined with a true 3D impression.
Award-Winning Objectives for Superior Image Quality
Trusted industry-leading optics renowned for their exceptional performance, delivering high-quality images that reveal the finest nuances.
Enhanced Resolution up to 1050 lp/mm: Take your imaging prowess to new heights with the 2.0x PlanApo objective, further enhancing resolution capabilities up to an astonishing 1050 lp/mm for unrivaled precision and detail.
FusionOptics™
Leverage revolutionary FusionOptics™ technology, as featured in the Leica M205, to capture crisp, high-resolution images with an unparalleled depth of field, ensuring every detail is in sharp focus.
Features
Specifications

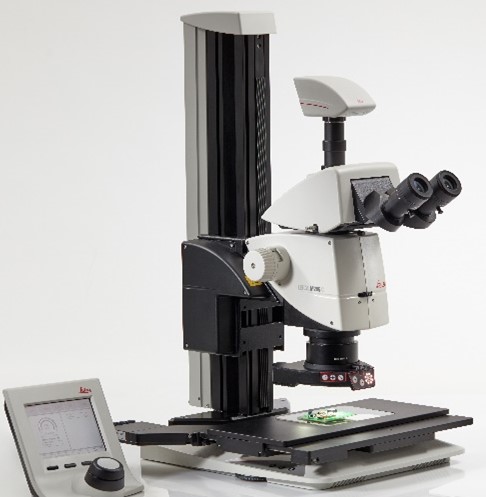

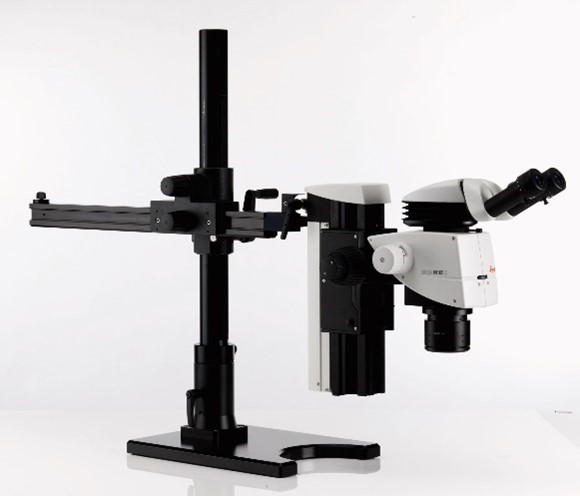

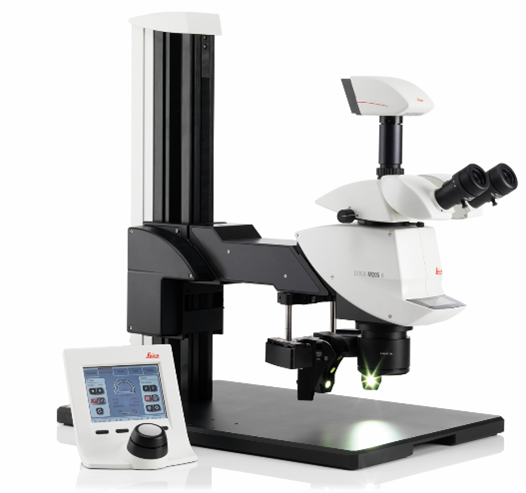

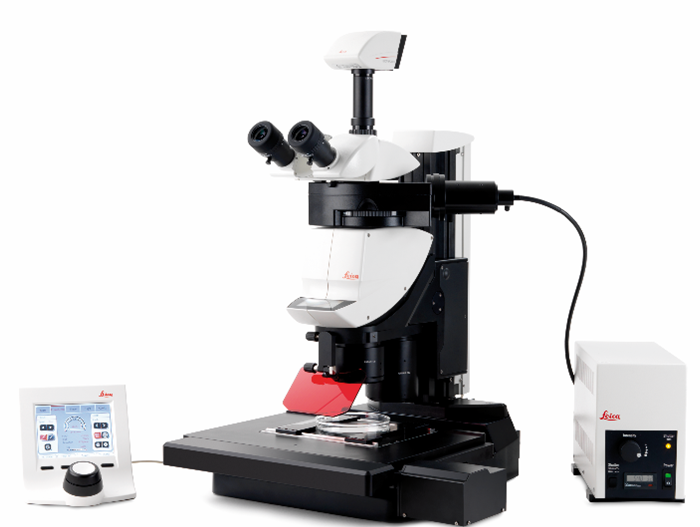

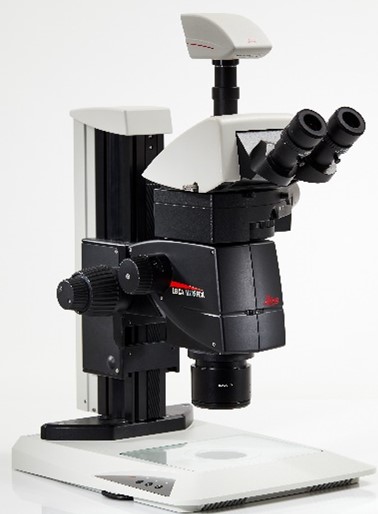

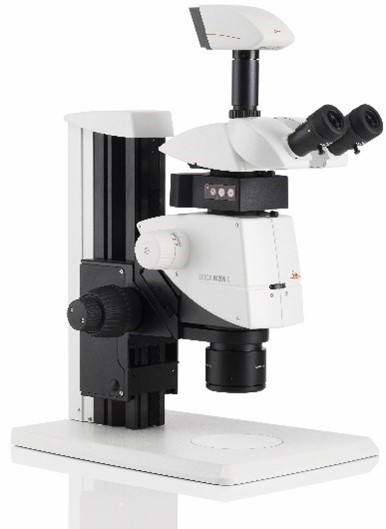

Characteristics | M205C | M205FA C | MM205FCA |
100% Apochromatic Optical System | Fusion optics, multiple-coated optical system with two parallel beam paths and one main objective (CMO), lead-free | ||
Zoom | 20.5:1 | 20.5:1 | 20.5:1 |
Viewing angle | 45° (adjustable) | 45° (adjustable) | 45° (adjustable) |
Magnification range * (1X obj-10X ep | 7.8x-160X | 7.8x-160X | 7.8x-160X |
Maximum resolution | 1,050 lp / mm | 1,050 lp / mm | 1,050 lp / mm |
Numerical aperture | 0,35 | 0,35 | 0,35 |
Working distance * (w / 1x objective) | 61.5 mm | 61.5 mm | 61.5 mm |
Object field diameter * | 5.75mm-36.5mm | 3.8mm-30.7mm | 2.3mm-28.8mm |
Adjustable zoom limits * | Continuous/Click Stop | Continuous/Click Stop | Continuous/Click Stop |
Video/photo outlet | Optional | Optional | Optional |
Standard objectives, lead-free | 0.5x, 0.8 x (planachromatic) (0.63x, , 1x, 1.6x, 2x (planapochromatic) | 0.5x, 0.8 x (planachromatic) (0.63x, , 1x, 1.6x, 2x (planapochromatic) | 0.5x, 0.8 x (planachromatic) (0.63x, , 1x, 1.6x, 2x (planapochromatic) |
Wide-field eyepieces for eyeglass wearers, adjustable, with eyecups | 10x, 16x, 25x, 40x | 10x, 16x, 25x, 40x | 10x, 16x, 25x, 40x |
Encoded/automated Function | Zoom, iris diaphragm, objective nosepiece (encoded only) | Zoom, iris diaphragm, objective nosepiece, FIM, filter | Zoom, iris diaphragm, objective nosepiece, filter |
Engageable zoom notches | 14 for repetitive tasks | 14 for repetitive tasks | 14 for repetitive tasks |
Double-iris diaphragm for depth of field control | Built-in and coded | Built-in and motorized | Built-in and coded |
FIM ( Fluorescence Intensity Control ) | N/A | Built-in and motorized | N/A |
Transmitted light stands | For bright field and bright/dark field, high-performance base: Bright field, single-sided dark field, with Rottermann Contrast and CCIC | ||
Incident light stand | Incident light base with black/white stage plate and Antishock™ feet | ||
Stages | Gliding stage, MATS heating stages, cup stage, rotatable polarization stage, Leica IsoPro™ cross-stage (manual and motorized) | ||
Illuminators | Cold light sources, LED3000 NVI™ and LED5000 CXI™, LED5000 MCI™, LED3000 RL, KL200 LED | ||
Photography, video | Digital image capture systems integrated Leica Flexacam I5 | ||
Image archiving, image processing | Leica Enersight software platform and supporting Leica Application Suite (LASX) software, consisting of basic program and various auxiliary modules | ||
Measurement graticules | For length measurement and counting | ||

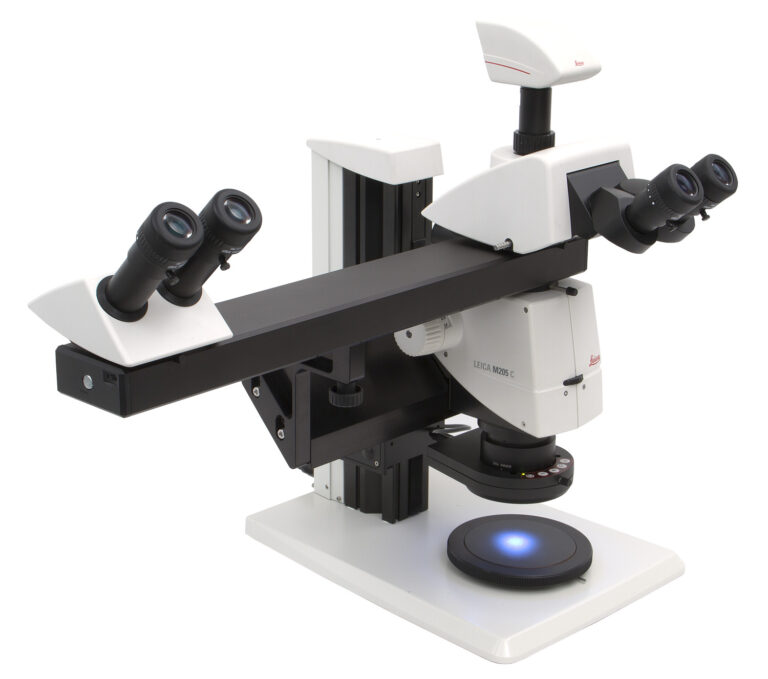

Discussion tube for training for two observers | For two observers |
