Ergonomic Routine Stereo Microscopes

Ergonomic routine stereo microscopes are specialized optical instruments that have become the standard in ergonomic microscopy, particularly for users engaged in repeated rework and constant inspection tasks. These microscopes are designed with a primary focus on user comfort during extended periods of use, making them ideal for industries such as electronics, manufacturing, quality control, and medical devices..

The standard in ergonomic microscopy. For users doing repeated rework and inspection constantly

Reduce complaints and injuries

Static exertion and inappropriate planning of the workplace lead to an increased incidence of back trouble and of pain in the neck, shoulders, knees and feet. Leica’s M-series products alleviate these problems with an infinitely adjustable microscope system designed to provide every individual with the most comfortable working position.

Bodily-complaints-image

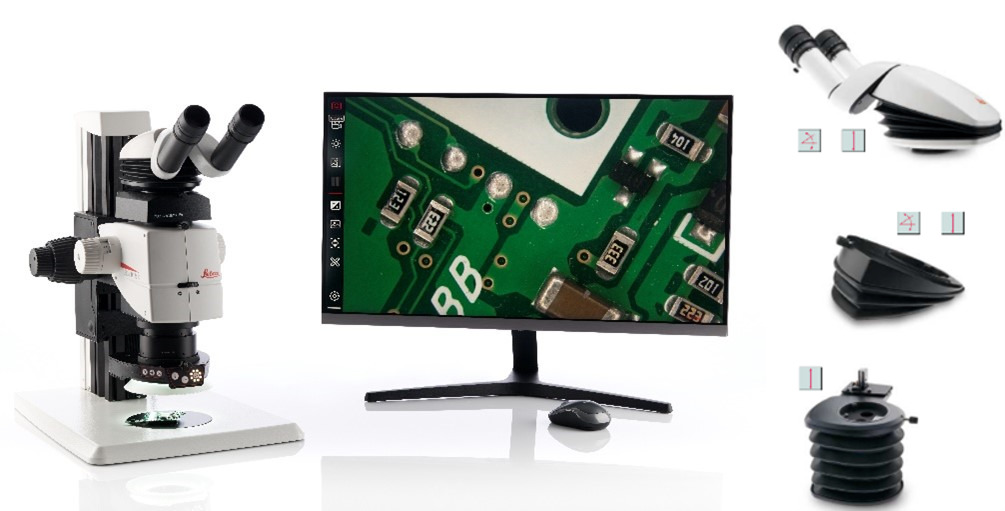

Ergonomic options for best comfort

Ergonomic-options-for-best-comfort

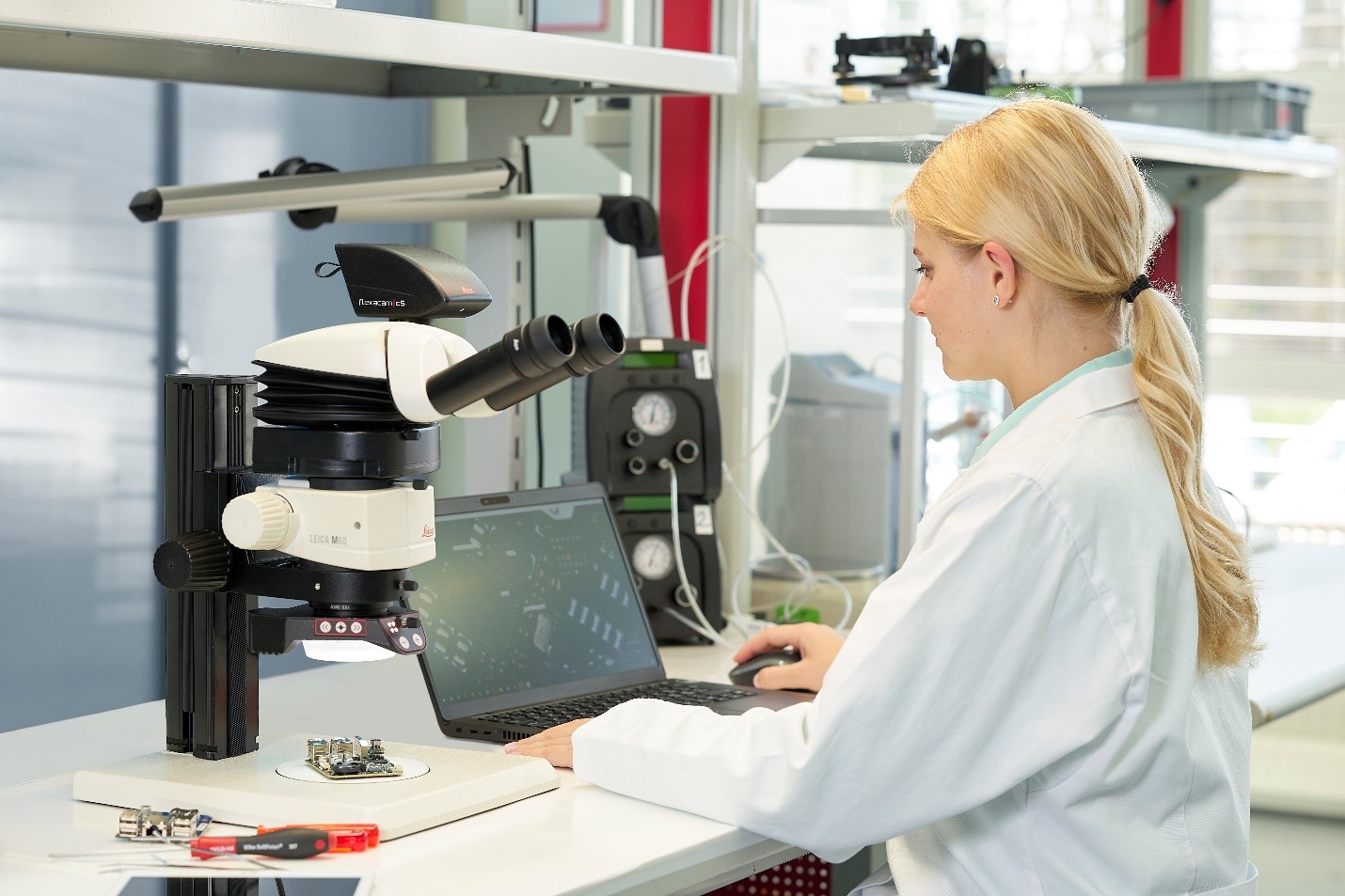

Leica’s M-Series products provide function and flexibility for users of various size making these the most comfortable instruments in the industry. The ergonomic design of these microscopes is a key feature, optimized to reduce physical strain during prolonged use. This includes adjustable viewing angles, flexible eyepieces, ergonomic stands or mounts, and proper working height to minimize neck and back strain.

Features

Ergonomic design with many options for all users.

Inspect, compare, measure, and share seamlessly on a single intuitive interface, regardless of how or where you do it.

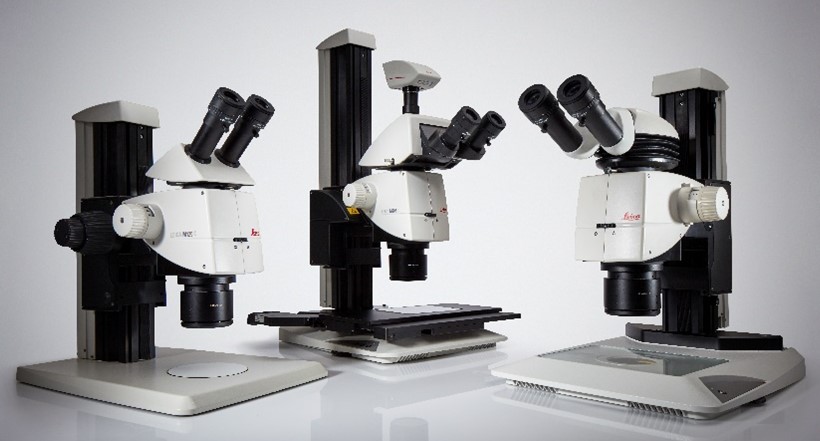

M-Series Models for every application

Specifications

Characteristics

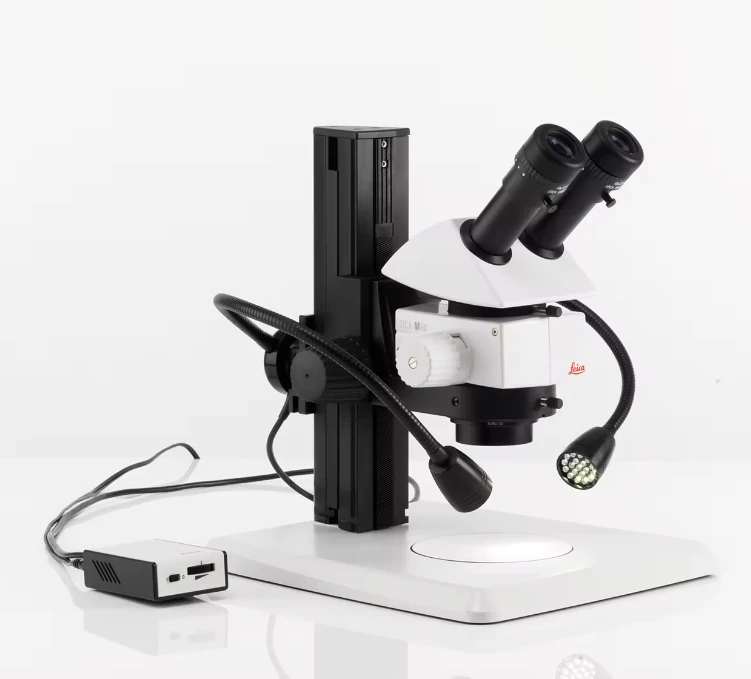

M50

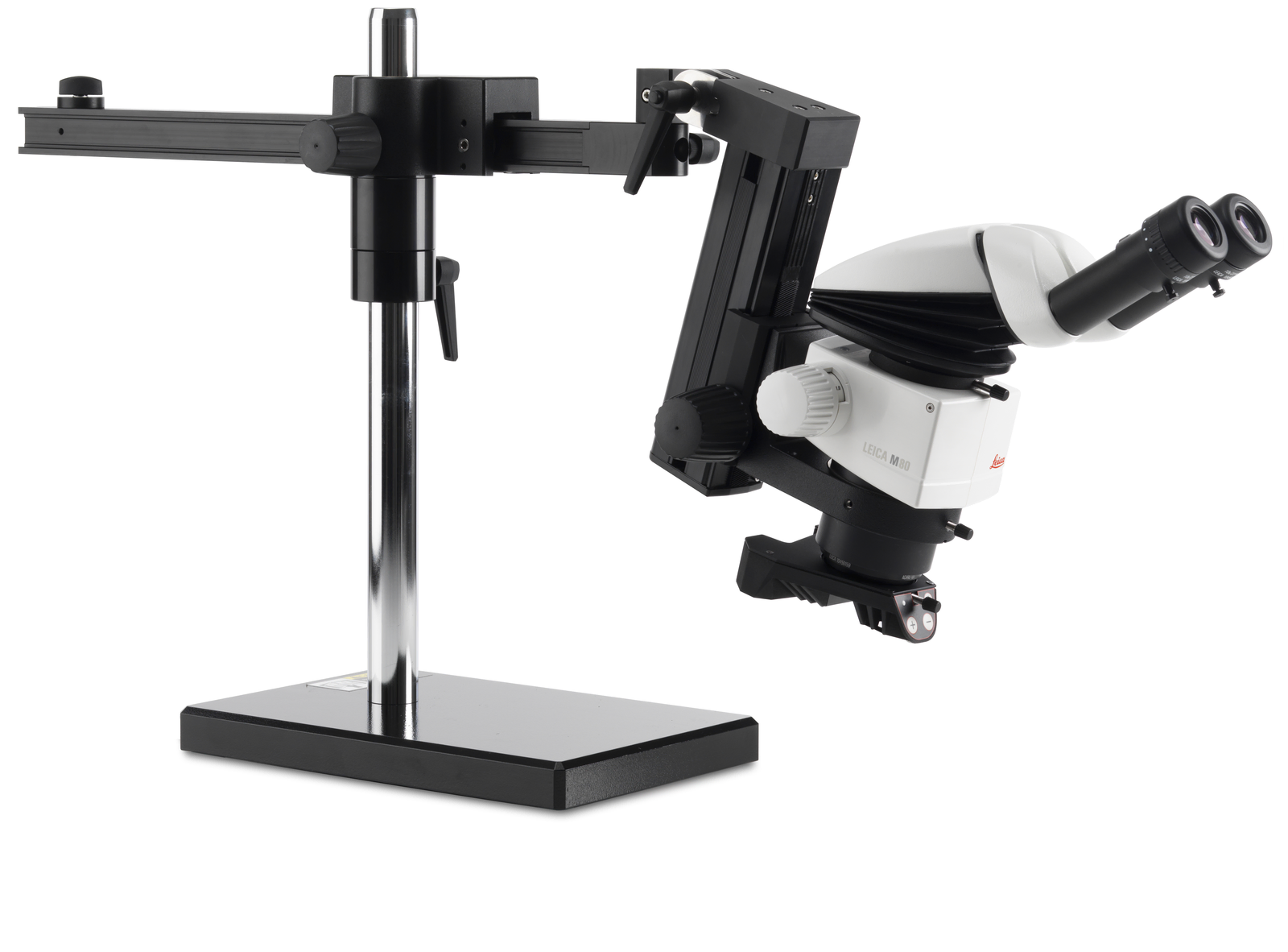

M80

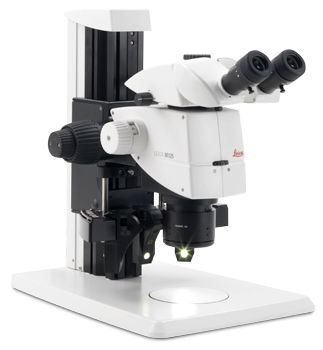

M125

Optical system, lead-free Multiple-coated optical system with two parallel beam paths and one main objective (CMO), lead-free
Zoom 5:1 8:112.5:1
Viewing angle 45° (adjustable) 45° (adjustable) 45° (adjustable)
Magnification range * Stepped 6.3x, 10x, 16x, 25x, 40x 7.5x-60x8x – 100x
Maximum resolution 450 lp / mm618 lp / mm864 lp / mm
Maximum numerical aperture 0,167 0,167 0,288
Working distance * (w/1x objective) 89.6 mm83.4 mm61.5 mm
Object field diameter * 5.75mm-36.5mm3.8mm-30.7mm2.3mm-28.8mm
Adjustable zoom limits * Step Continous Continous
Video/photo outlet Optional Optional Optional
Standard objectives, lead-free 0.32x, 0.5x, 0.63x, 1x, 1.6x, 2x 0.32x, 0.5x, 0.63x, 1x, 1.6x, 2x 0.32x, 0.5x, 0.63x, 1x, 1.6x, 2x
Ergonomic eyepieces for eyeglass wearers, adjustable, with eyecups 10x, 16x,25x, 40x10x, 16x,25x, 40x10x, 16x,25x, 40x
Transmitted light stands For bright field and bright/dark field, high-performance base: Bright field, single-sided dark field, with Rottermann Contrast and CCIC
Incident light stand Incident light base with black/white stage plate and Antishock™ feet
Stages Gliding stage, MATS heating stages, cup stage, rotatable polarization stage, Leica IsoPro™ cross-stage (manual and motorized)

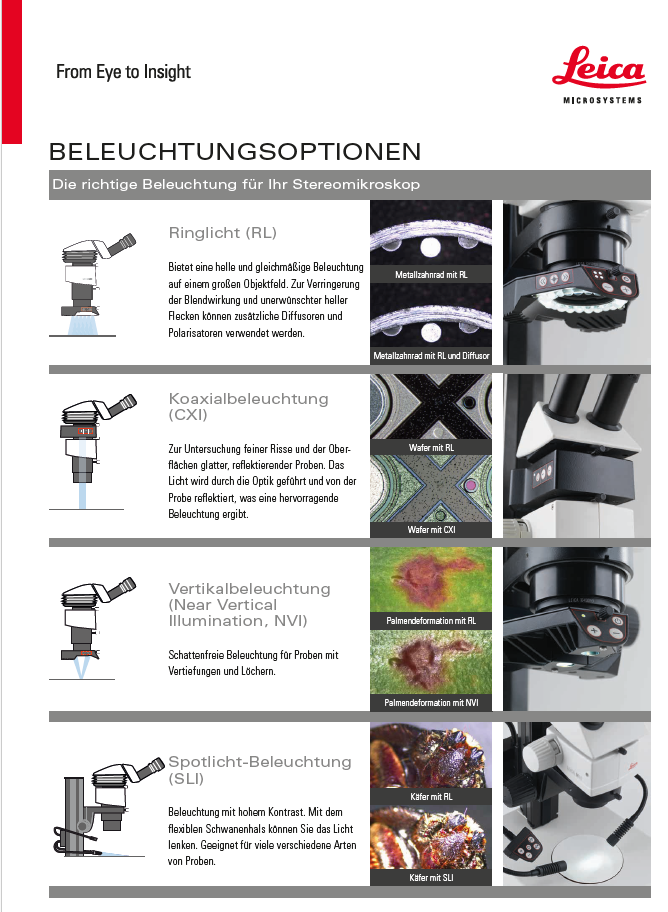

Illuminators Cold light sources, LED3000 NVI™ and LED5000 CXI™, LED5000 MCI™, LED3000 RL, KL200 LED
Photography, video Digital image capture systems integrated Leica Flexacam I5
Image archiving, image processing Leica Enersight software platform and supporting Leica Application Suite (LAS) software, consisting of basic program and various auxiliary modules
Measurement graticules For length measurement and counting
Discussion tube for training for two observers For two observers
