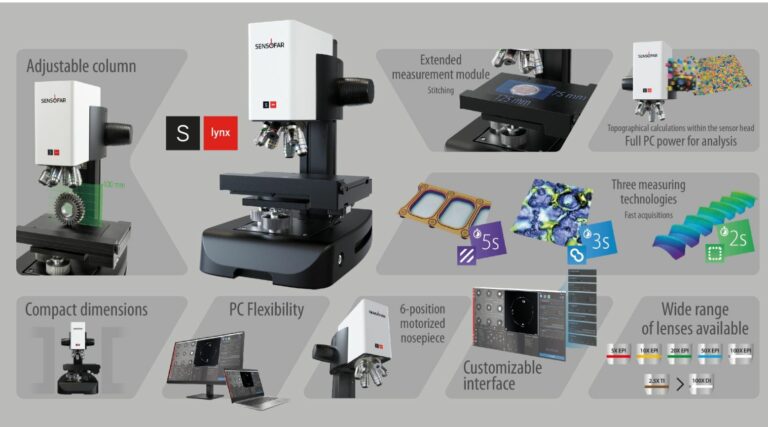

Sensofar S lynx 2 Automated Compact Surface Profiling
Sensofar ‘s S lynx 2 compact 3D surface profiling system enables precise measurements and comprehensive analysis, in cost effective small format platform.
S lynx 2 Features
- 3-in-1 technologies in one instrument including confocal, interferometry, AI focus variation
- Automated with fast data acquisition
- Complete surface characterization, analysis, and reporting
- Designed for quality assurance, failure analysis, and R&D
- Surface texture parameters based on ISO standards
- Cost-effective compact platform
S lynx 2 Benefits
- High-speed and versatile mapping of surface features down to the nano-scale
- 3 technologies provide accurate data from any rough, semi-rough, glass like, or highly-reflective surfaces
- Versatile for use in aerospace, automotive, battery film, medical device, and advanced manufacturing applications
- Motorized stage for fast data sampling, manual tip-tilt for easy sample preparation
- Advanced stitching up to 125mm x75mm

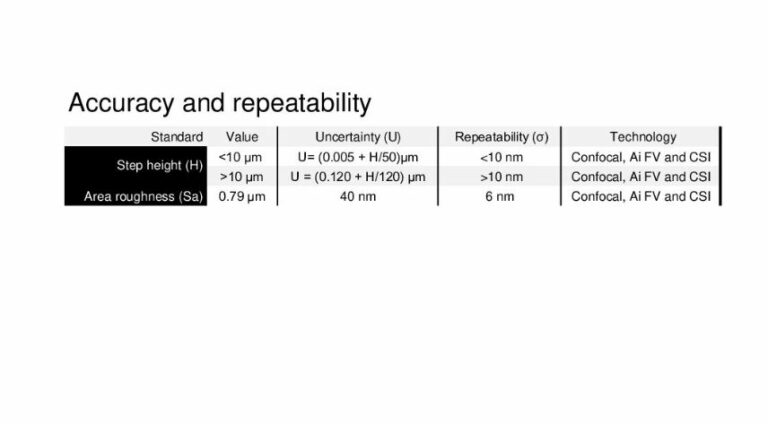

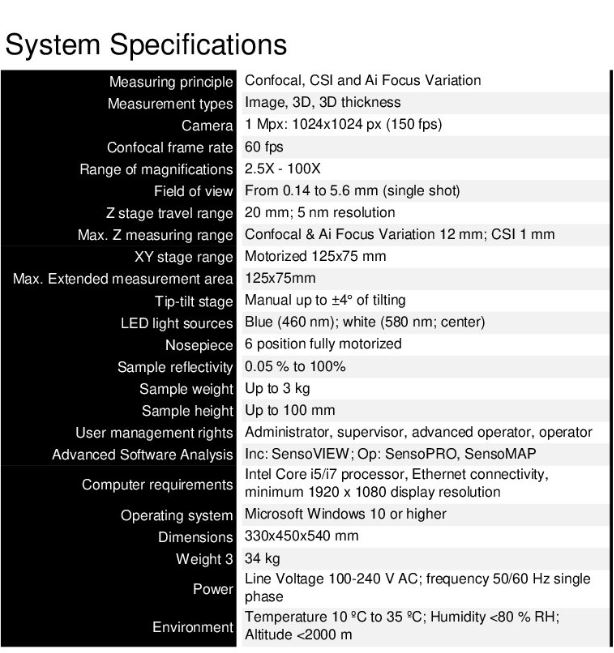

Specifications
