Leica Visoria M/P Upright Materials & Polarizing Microscope
The Leica Visoria M and Visoria P are upright microscopes built for routine materials inspection, polarization microscopy, and industrial quality control.
The Visoria M functions as a metallurgical microscope for examining metals, alloys, electronic and mechanical components, composite materials, glass, and ceramics, while the Visoria P adds a full polarization toolkit for studying birefringent minerals, asbestos, and other anisotropic materials.
Both are powered by Leica’s Enersight software platform, which handles coating thickness measurement, image stitching, and automated documentation with minimal manual adjustment.
Ergonomic controls, encoded functions, and an optional eyepiece-free digital configuration reduce strain during long inspection sessions.Â
Visoria M vs. Visoria P: Which Materials Microscope Is Right for You?
Both models share the same ergonomic stand and Enersight software platform, built around different optical toolkits:
- Visoria M (Materials Microscope): A metallurgical microscope for metals, alloys, ceramics, composite materials, and electronic or mechanical components. Includes brightfield, darkfield, DIC, and oblique illumination contrast, plus an optional 0.7x macro objective for fast sample overview at roughly 36mm field of view before switching to higher magnification.

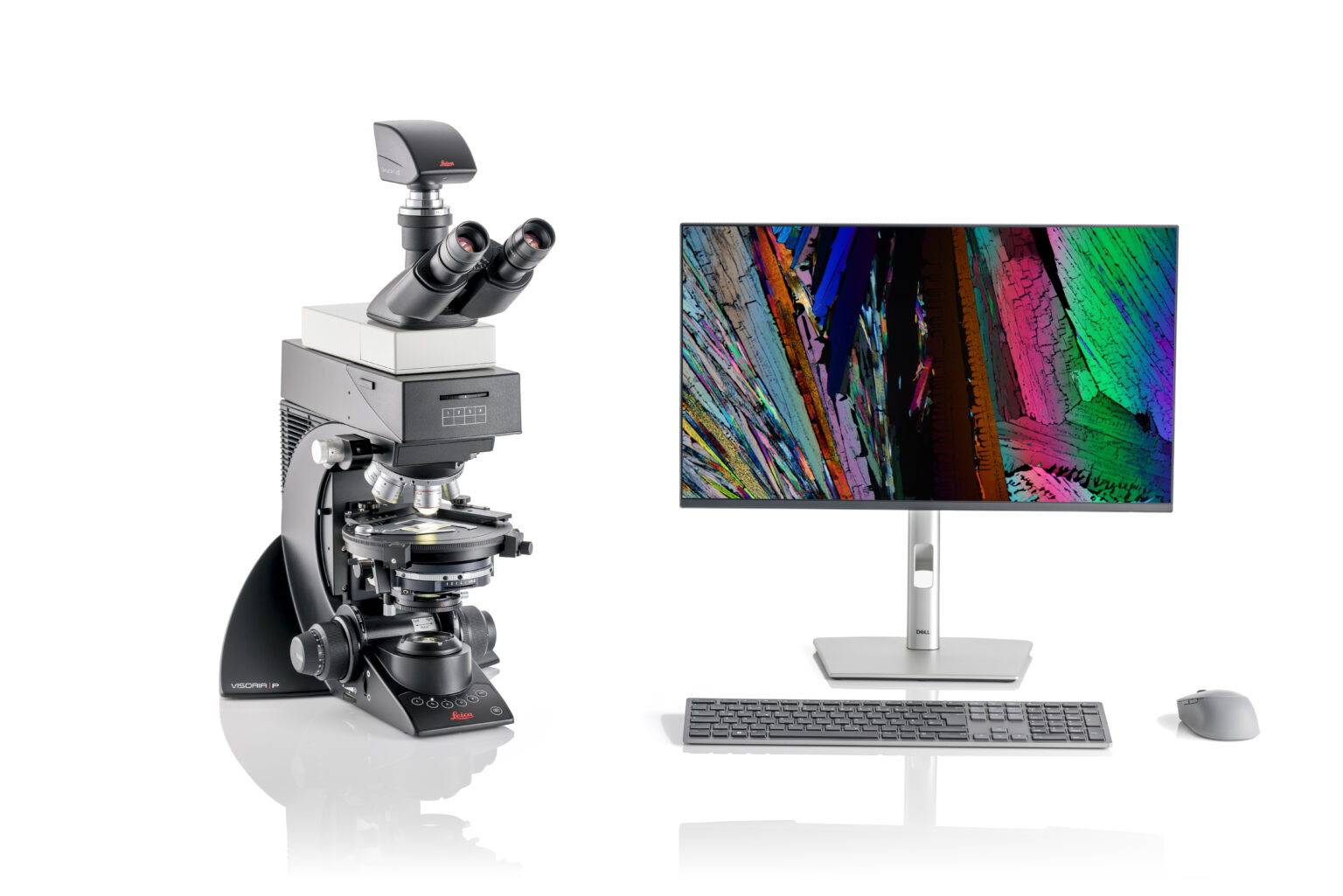

- Visoria P (Polarizing Microscope): A polarizing microscope for birefringent and anisotropic materials — minerals, geological thin sections, and asbestos analysis. Adds conoscopy with multiple modules and Bertrand lens options, plus special objectives tailored for asbestos and coal analysis.
Visoria M/P Features
- Encoded functions: Auto-adjusting light and contrast settings apply automatically when you change magnification or contrast method — no manual brightness adjustment between steps.
- One-touch image capture: Save images with metadata directly from a button on the microscope stand, without breaking focus on the specimen.
- Auto scale bars: Scale bars are calculated and added to captured images automatically, eliminating manual post-processing.

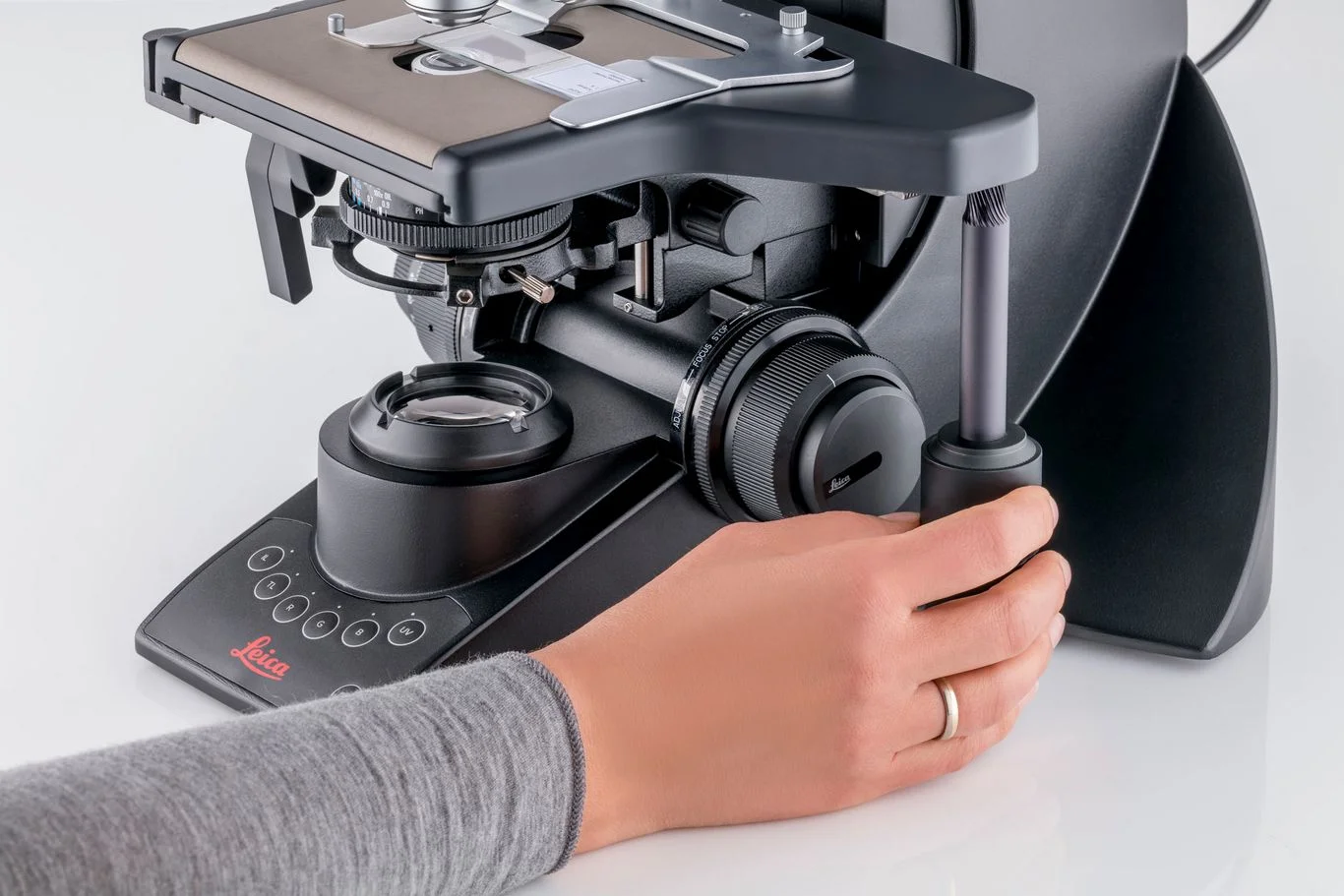

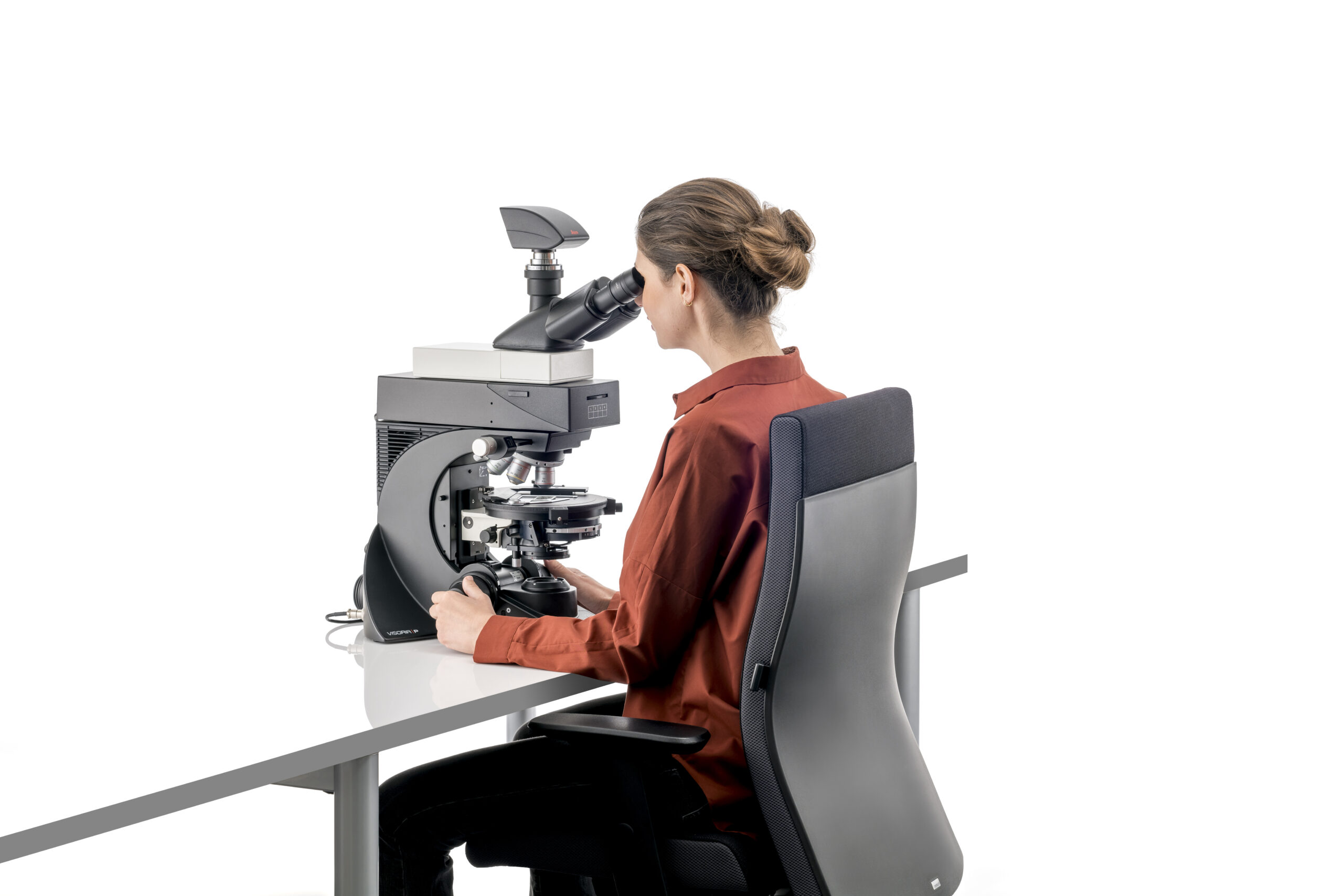

- Ergonomic design: Symmetric, height-adjustable stage and focus controls support one-handed, left- or right-handed operation — reduces neck, shoulder, and repetitive strain during extended inspection sessions.

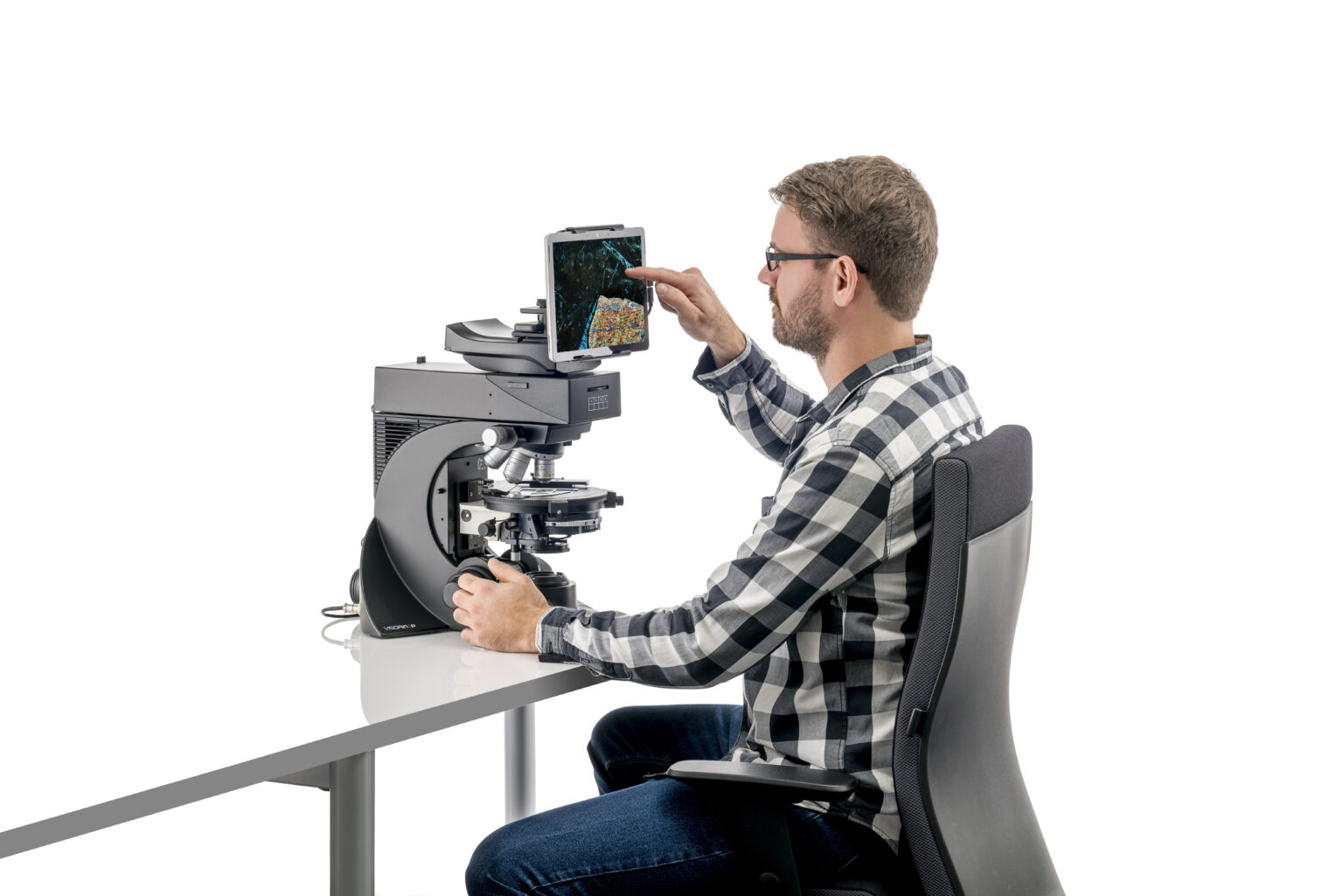

- Digital, eyepiece-free operation: View and document samples directly on a tablet, saving workbench space and eliminating the need for a separate computer.
- Advanced contrast modes: Brightfield, darkfield, polarization, DIC, and oblique illumination for surface topography — plus conoscopy and Bertrand lens options on the Visoria P for birefringence analysis.
- Broad objective range: Switch between wide-area overview and fine detail, including the optional 0.7x macro objective for rapid sample screening.Â
Powered by the Enersight Software Platform
The Visoria microscopes are fully integrated with Enersight, a versatile software platform that enhances data capture, visualization, and reporting across both material and polarization inspection.
Key Software Capabilities
- Layer Thickness Measurement – Semi-automated measurements with min/max/avg calculations for coating and layer thickness.
- XY Stitching with Manual Stage – Observe larger fields of view with high resolution by stitching multiple images.
- EDOF Imaging – Capture sharp images with extended depth of field.
- Quick Brightness Adjustment – Optimize lighting and camera settings automatically.
- Contrast Method Fusion – Merge images taken with different contrast techniques for more insightful results (e.g., brightfield + polarization).
- Shading Correction – Eliminate image inconsistencies from uneven illumination automatically.
Specifications
Leica Visoria M/P FAQ's
Q: What’s the difference between the Visoria M and Visoria P?
The Visoria M is a metallurgical microscope for metals, alloys, ceramics, and electronic or mechanical components. The Visoria P is a polarizing microscope for birefringent materials — minerals, geological thin sections, and asbestos analysis — with added conoscopy and Bertrand lens options. Both share the same ergonomic stand and Enersight software platform.
Q: Can the Visoria M/P measure coating or layer thickness?
Yes. The Enersight software platform includes a semi-automated coating thickness measurement function that reports minimum, maximum, and average thickness for coatings and layers directly from captured images.
Q: Is the Visoria P suitable for asbestos or PLM analysis?
Yes. The Visoria P includes special objectives tailored for asbestos and coal analysis, along with polarization and conoscopy tools commonly used in polarized light microscopy (PLM) workflows. Contact JH Technologies for configuration guidance specific to your analysis requirements.
Q: Is Visoria available with fluoresence?Â
Yes. Visoria can be configured with fluorescence at time of order.
Q: Can I operate the Visoria M/P without eyepieces?
Yes. Both models are available in a digital, eyepiece-free configuration that lets you view and document samples directly on a tablet, saving workbench space and removing the need for a separate computer.
Q: Is the Visoria M/P available for purchase in the United States with support?
Yes. JH Technologies is an authorized Leica dealer based in Fremont, CA, serving material science labs, manufacturing environments, and research institutions nationwide. Contact us for pricing, configuration guidance, and availability.
