Buehler AbrasiMet L/M/XL Pro: Automatic Abrasive Cut Off Saw for Large Area Sectioning (New)

Achieve a consistent and high quality cut while making setup and cutting fast using in intuitive programmable interface, allowing users to focus on other tasks during the cycle.

The Buehler AbrasiMet L, M, and XL Pro are automatic abrasive cut off saws designed for large area metallographic sectioning. Built for labs that need to section large or irregularly shaped samples — billets, castings, weldments, structural sections — quickly and with consistent cut quality, the AbrasiMet Pro series combines programmable feed rate control with automatic blade dressing and a touchscreen interface. All three models use standard abrasive blades and are compatible with Cool 3 water-soluble cutting coolant, available directly from JH Technologies. (New)

Automatic Abrasive Sectioning Machines Features

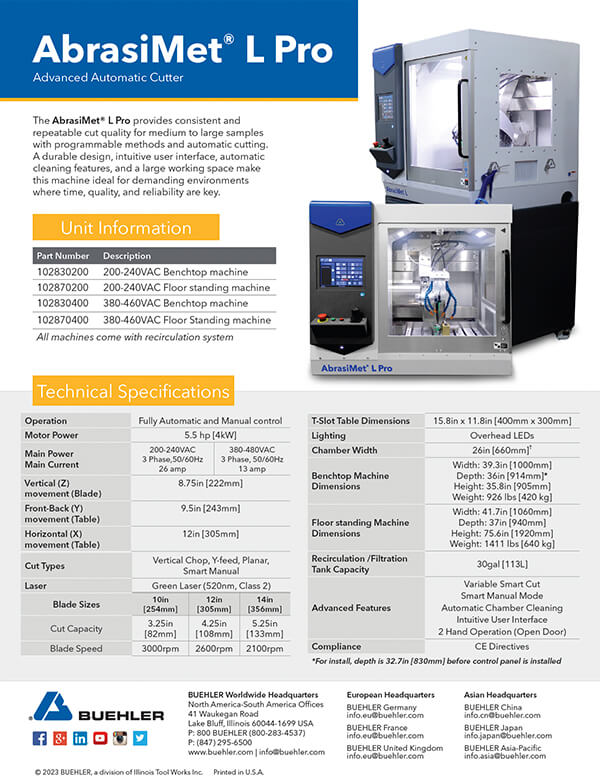

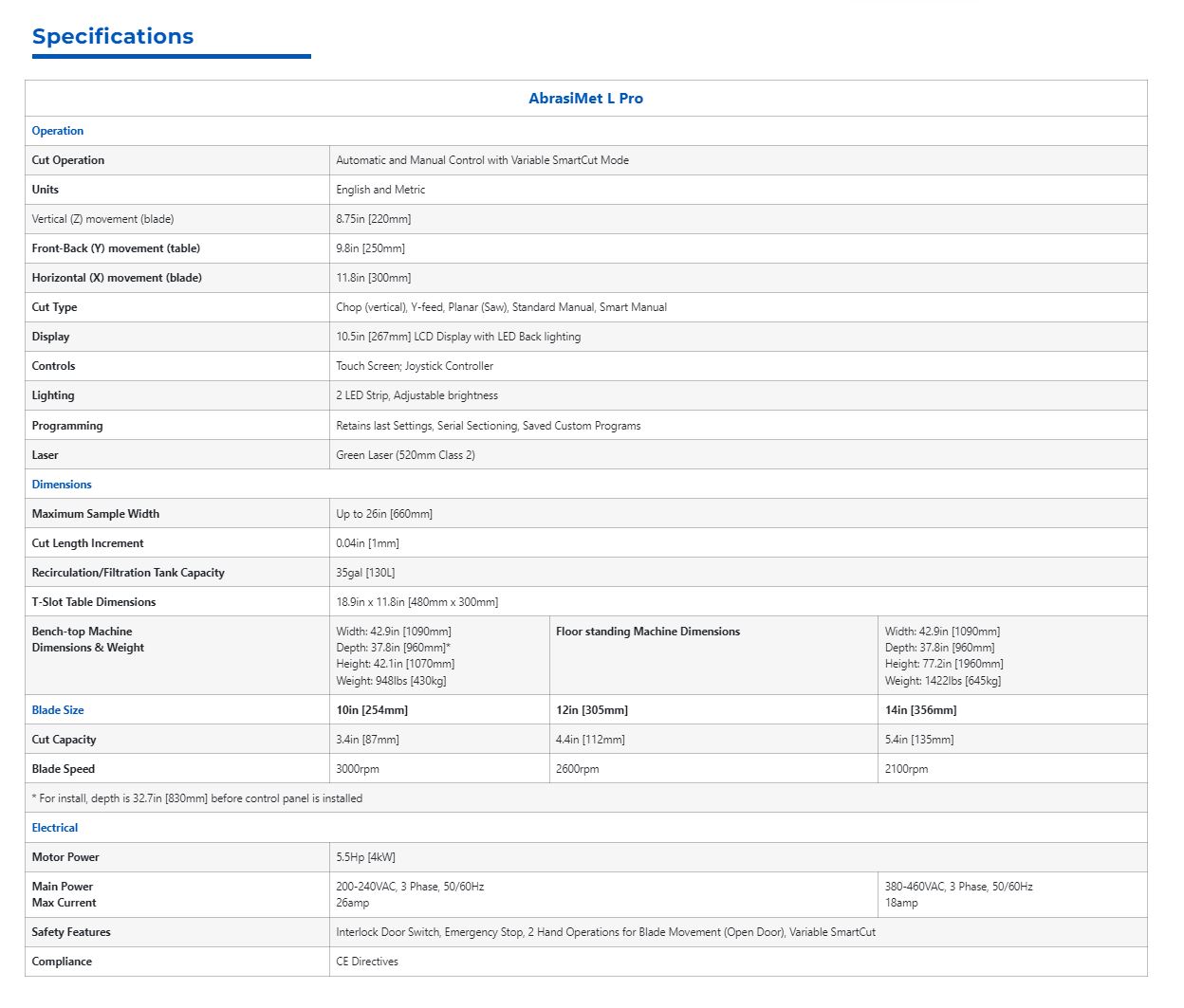

The AbrasiMet L Pro automatic abrasive cutter is a high-performance 14″ cut-off saw, designed to be intuitive, advanced, and reliable.

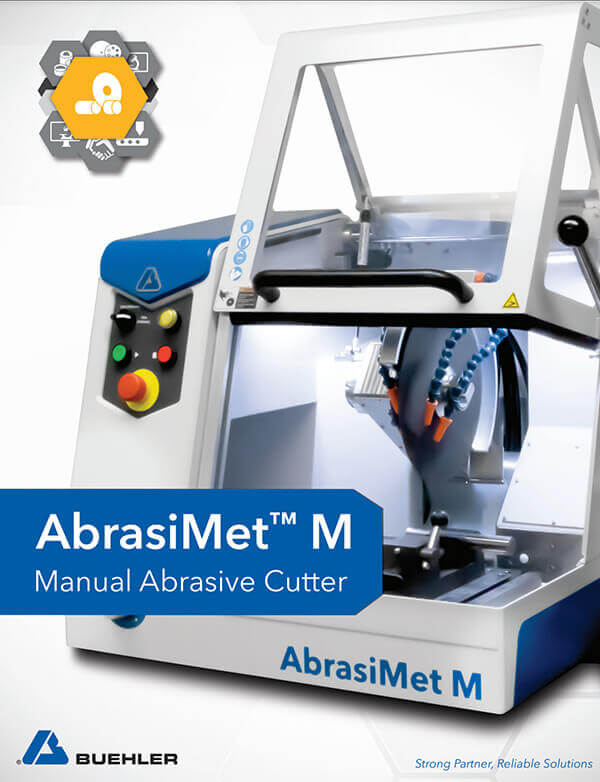

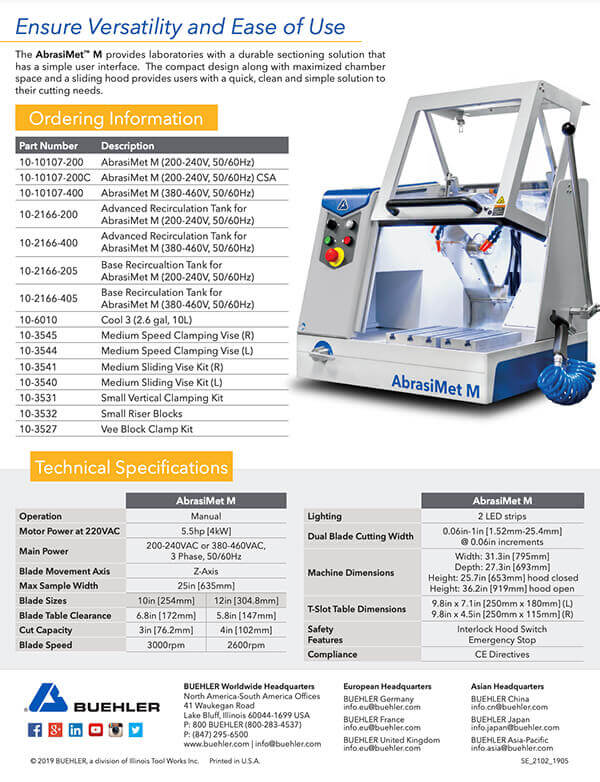

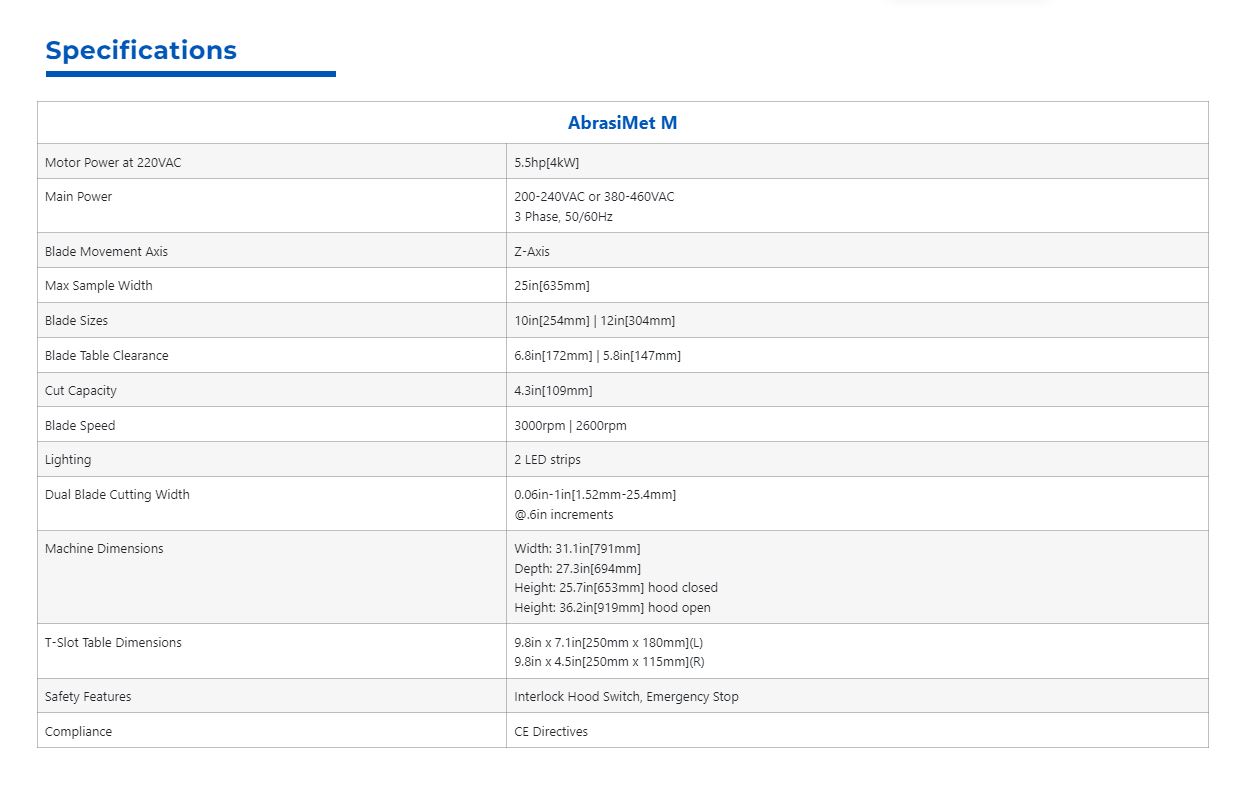

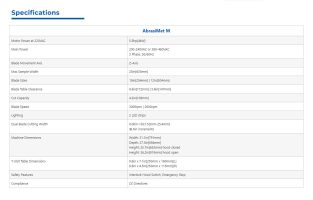

The AbrasiMet M manual abrasive cutter is a benchtop cutter and the ultimate 12″ manual abrasive sectioning machine, designed to be easy to use, durable, and versatile for your cutting needs.

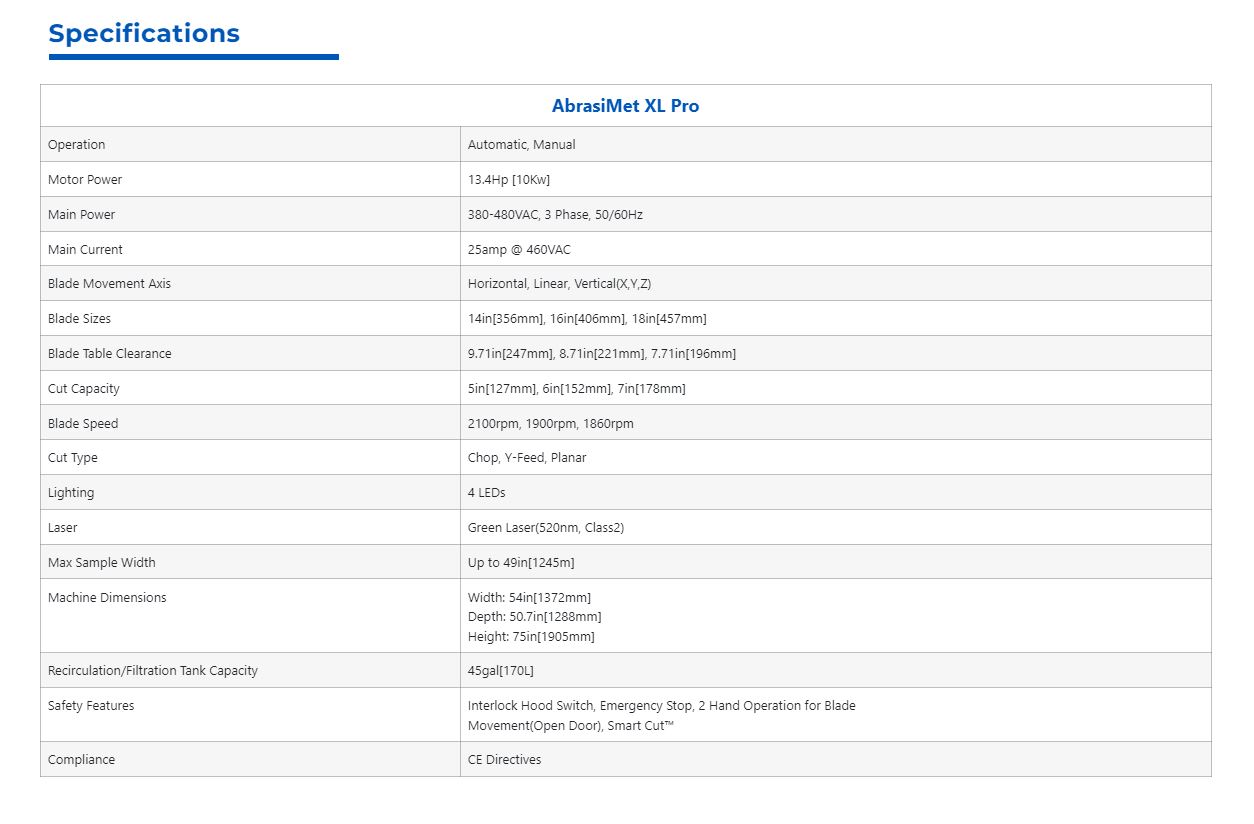

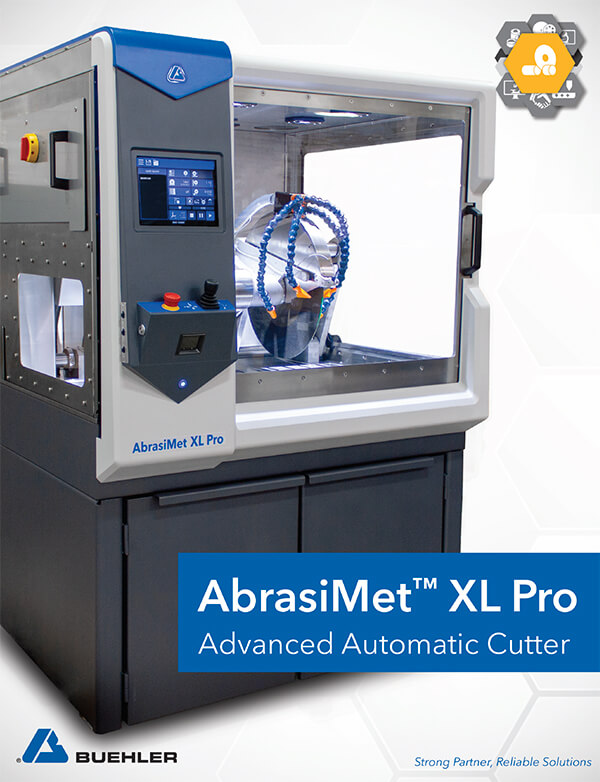

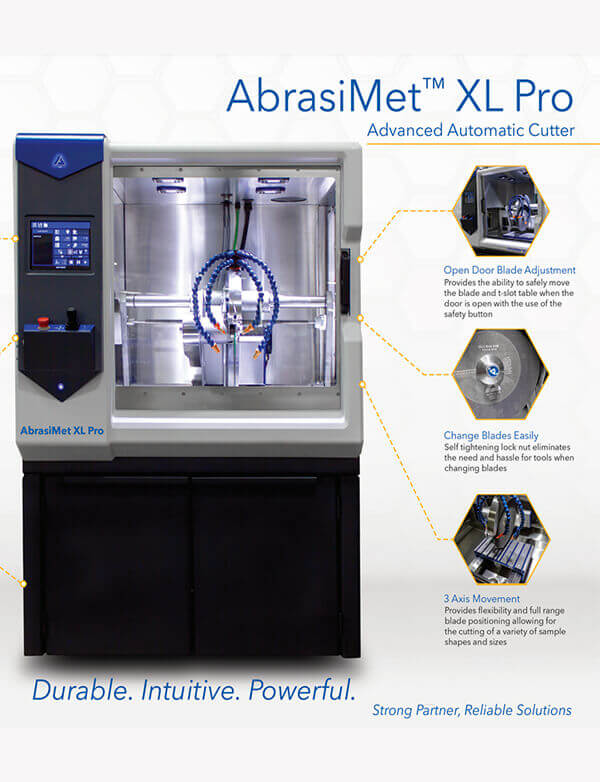

The AbrasiMet XL Pro automatic abrasive saw up to 18″ capability ideal for the most demanding environments.

Automatic Abrasive Sectioning Machines Features (New)

All three AbrasiMet Pro models share the same core automatic sectioning platform. Key features across the range:

Automatic feed rate control: Programmable feed rate with load-sensing — maintains consistent cutting conditions regardless of material variation, reducing blade wear and heat damage to the cut surface
Automatic blade dressing: Onboard dressing restores abrasive blade cutting performance without removing the sample — critical for maintaining consistent cut quality across a production run
Touchscreen interface: Full-colour touchscreen for parameter entry, stored program recall, and cycle monitoring — reduces setup time and operator variability between runs
Stored programs: Save and recall cutting parameters by material or sample type — ensures repeatability across operators and shifts
Coolant system: Integrated recirculating coolant system compatible with Cool 3 water-soluble cutting coolant — controls heat at the cut zone and extends blade life
Blade compatibility: Accepts standard abrasive cut off saw blades in sizes matched to each model — blade selection based on material type and required cut quality
Vise system: Powered vise secures samples of varying geometry — accommodates irregular cross-sections, round bar, structural profiles, and flat stock

Benefits

The below section will be deleted

Improve sample quality. Large motor for cutting through any sample.
Easy to use, easy to set up. Intuitive touchscreen.
Reliable and easy to maintain
Powerful for difficult cuts
AbrasiMet L/XL Pro include laser alignment, bright lights, and large viewing windows

Choose Your AbrasiMet Configuration (New)

The L, M, and XL Pro models share the same automatic sectioning platform but differ in cutting capacity and blade size. Selection is driven by maximum sample cross-section and throughput requirements.

AbrasiMet L Pro — choose this if:

Sample cross-sections are up to the L Pro’s rated capacity — suited for medium to large bar stock, castings, and structural sections
Single-station cutting with programmable automation is the primary requirement
Lab footprint limits a larger machine

AbrasiMet M Pro — choose this if:

Sample dimensions exceed the L Pro capacity — larger billets, heavy weldments, or wider structural sections
Higher throughput is needed with the same automatic feed and dressing features
Blade size step-up is justified by sample cross-section

AbrasiMet XL Pro — choose this if:

Maximum cutting capacity is the primary requirement — the largest cross-sections in the AbrasiMet Pro range
High-volume production sectioning environments where downtime between cuts must be minimized
Sample geometry or material requires the largest available abrasive blade format
