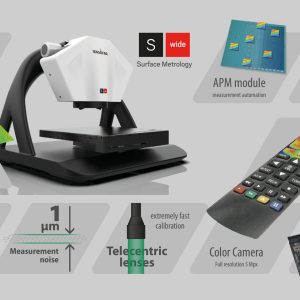

Sensofar S wide Surface Metrology

The S wide system uses Fringe Projection technology to quickly acquire large-area measurements with high vertical resolution. It includes analysis tools to extract data on roughness, flatness, critical dimensions, GD&T, and CAD comparisons.

Features

  • Measuring with the S wide is as simple as it gets: load the sample, load the recipe, and check the results
  • Large setups measure 300 x 300 mm stage configuration and up to 350 mm of height
  • High data density of 3D scanner to capture every details
  • Evaluate the flatness of your most extensive specimen
  • Adaptable algorithms using optimized measurement protocols

Benefits

sensofar s wide product
  • Large viewing area and greater depth of focus minimizes repetitive motions calibration more efficient.
  • The acquisition software provides a complete automatization of measurement procedures. It features tools for effortless programming of measurements at different positions
  • Offers four distinct configurations that fit various scenarios, either a standard setup for R&D or an advanced solution for inline process control.
  • Structured light system provides a large field of view (FOV) and depth of focus, enabling it to capture an impressive region of 35 x 29 x 40 mm.

What is the Fringe Projection System?

The S wide delivers quick measurements to minimize cycle time. It efficiently covers a large area without the need for Z movement. In addition, its customizable fringe projection modes further optimize measurement time for maximum efficiency. 

sensofar scan
sensofar scan
