X-Ray systems for Battery Technology

The XSCAN-9000 series offers four specialized X-ray inspection system variants (Prismatic, Cylindrical, Polymer, and Polymer Stack) designed for comprehensive battery and condenser inspection, featuring high-speed automation and customizable configurations with inspection speeds ranging from 1 to 400ppm depending on the model.

XSCAN-9000 series Features

Across All Models:

    • Multiple x-ray tube power options (100kV/130kV/150kV)
    • 5μm closed type focal spot
    • Flexible detector options (2/4″ image intensifier or 5″ FPD or TDI)
    • Fast speed tact time
    • Easy job-change capability
    • World-class inspection accuracy
    • Customizable inspection parameters
XSCAN-9000 series
XSCAN-A series

Model-Specific Features

XSCAN-9000 series
XSCAN-A series

Prismatic:

  • Inspection area: 30~180ppm
  • Largest dimensions: 2500 x 1800 x 2450mm
  • Heaviest weight: 4200kg

Cylindrical:

  • Highest inspection speed: 40~400ppm
  • Compact dimensions: 1400 x 1440 x 1834mm
  • Weight: 3500kg

Polymer (Winding Type):

  • Inspection area: 30~180ppm
  • Medium size: 2580 x 1266 x 2000mm
  • Lightest weight: 3200kg

Polymer Stack Type:

  • Precision inspection: 1~12ppm
  • Specialized dimensions: 1860 x 2170 x 1900mm
  • Weight: 3500kg

XSCAN-9000 series Benefits

  • Comprehensive battery defect detection
  • Specialized inspection for different battery formats
  • High-throughput capabilities
  • Integration with production lines
  • Adaptable to various battery manufacturing processes
  • Automated inspection reducing manual labor
  • Quick product changeover capability
  • Easy maintenance and operation
  • Suitable for high-volume production
  • Three-phase power support for industrial settings
XSCAN-9000 series
XSCAN-A series

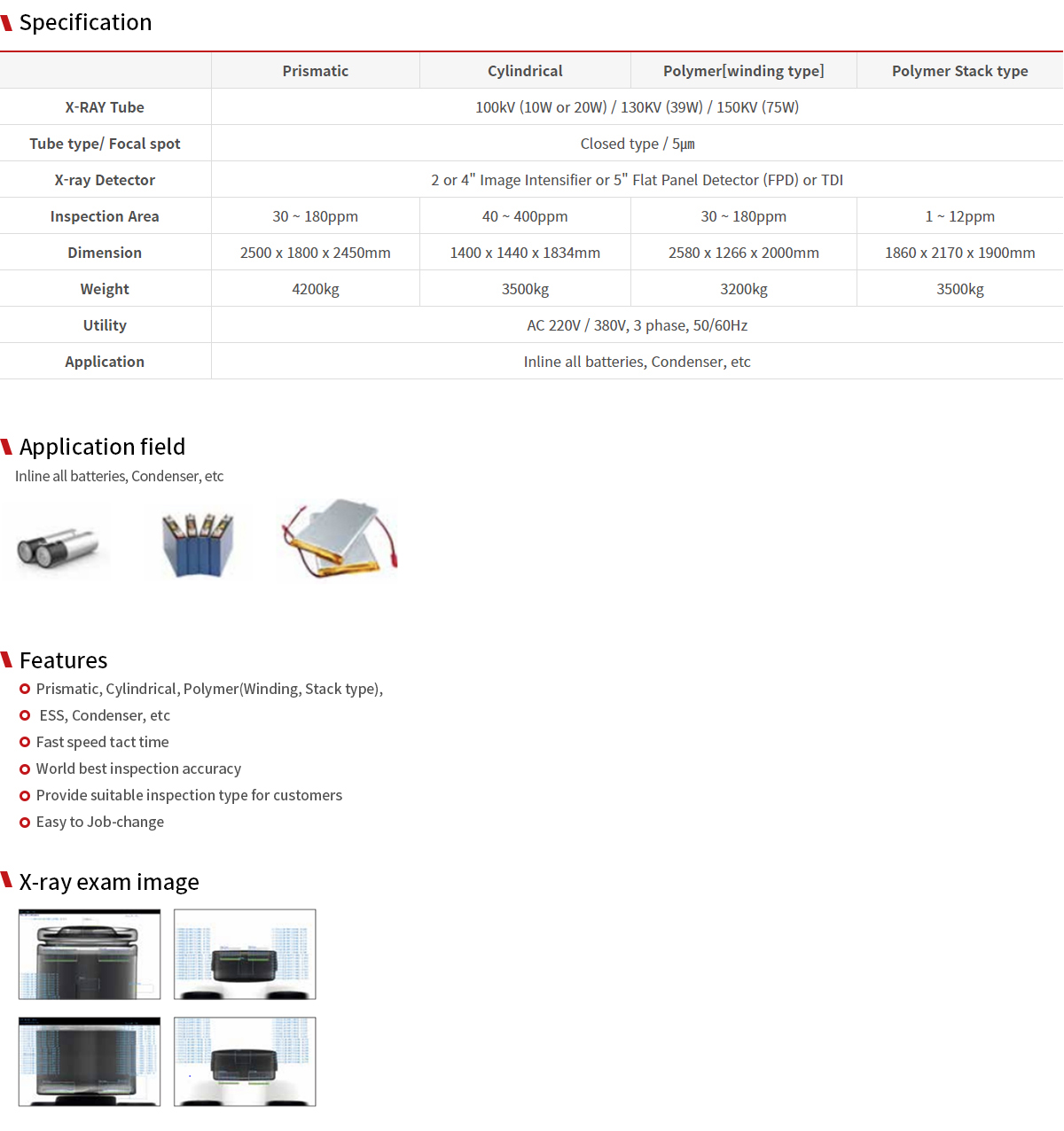

Specifications
