X-ray systems for Electronics

The XSCAN-A series consists of four advanced X-ray inspection systems (A100R, A130H, A150, and A100W) offering 2D/3D hybrid inspection capabilities, with power options ranging from 100kV/10W to 150kV/75W, designed for comprehensive electronic component and PCB inspection using high-precision OCT technology.

XSCAN-A series Features

Across All Models:

    • 5μm closed type focal spot for precise imaging
    • High-quality 5″ flat panel detector (FPD)
    • Basic 4-axis control (X,Y,Z,T with optional R)
    • Navigation user interface with auto teaching
    • Various measuring tool software
    • Easy-to-use operation system
    • Optional cone beam CT capability
Xavis

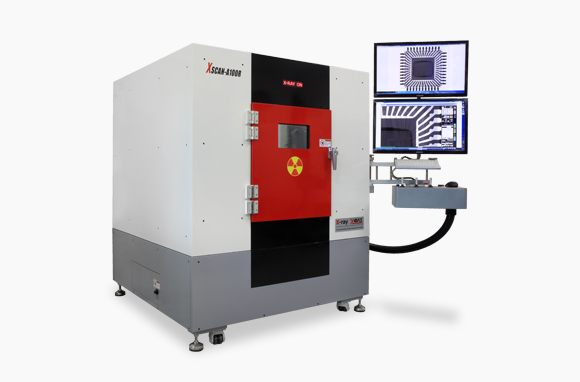

XSCAN-A series

Model-Specific Features

Xavis
XSCAN-A series

XSCAN-A100R & A100W:

  • 100kV/10W x-ray tube power
  • A100W offers larger inspection area (650 X 550mm)
  • A100W has larger dimensions (1660 x 1580 x 1710mm)

XSCAN-A130H:

  • Enhanced power with 130kV/39W x-ray tube
  • Standard inspection area (500mm X 500mm)

XSCAN-A150:

    • Highest power rating at 150kV/75W
    • Ideal for thicker or denser materials

XSCAN-A series Benefits

  • Suitable for SMT assemblies inspection
  • Effective for semiconductor analysis
  • Reliable battery inspection capabilities
  • Comprehensive PCB and PCBA examination
  • Adaptable to various electronic component requirements
  • Single platform for multiple inspection needs
  • Automated features reducing operator workload
  • Choice of power options for different applications
  • Scalable system based on inspection requirements
Xavis
XSCAN-A series

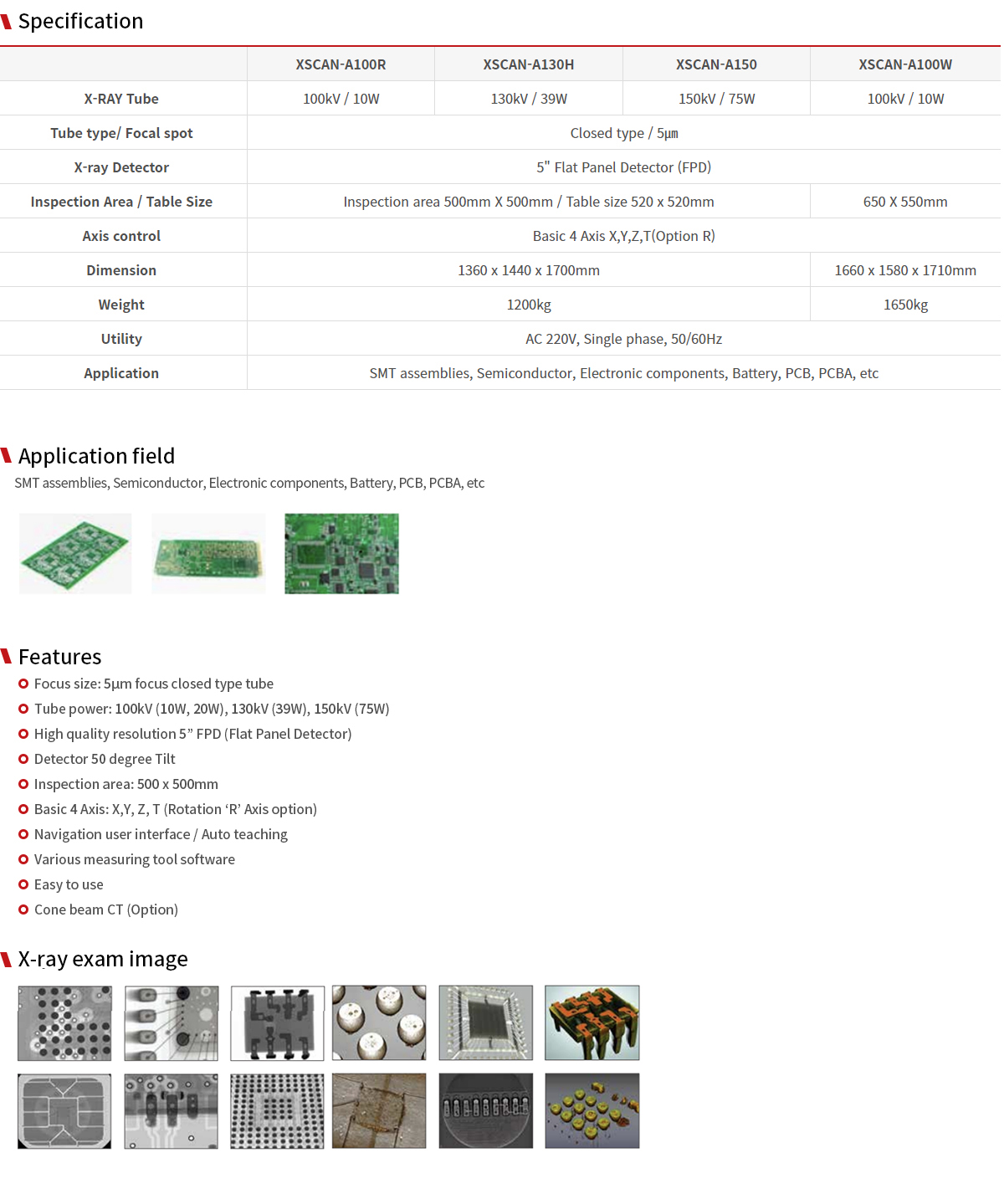

Specifications
