Industrial X-Ray Inspection Systems

Industrial X-ray inspection system for non-destructive testing in electronics and aerospace — Our industrial x-ray inspection systems are designed for non-destructive testing (NDT) across electronics, aerospace, automotive, and other high-precision industries. These advanced x-ray inspection systems advanced software and technology to ensure precise, reliable, and fast results. Delivering high-resolution images, they are ideal for applications like defect detection, structural integrity assessment, quality control, and failure analysis.

What is Industrial X-Ray Inspection?

Industrial x-ray inspection is a non-destructive testing (NDT) method used to evaluate the internal structure of materials, components, or assemblies without damaging them. By passing x-rays through an object and capturing the resulting image, manufacturers can detect hidden defects such as cracks, voids, misalignments, and foreign materials.

This technology is commonly used in industries where internal quality is critical—such as electronics, batteries, semiconductors, aerospace, automotive, and heavy manufacturing. Systems may use 2D X-ray, computed tomography (CT), or 3D imaging depending on the resolution, speed, and complexity required.

X-Ray Inspection Systems for Electronics and PCBs

Built for the electronics industry, our x-ray inspection equipment provides sharp, high-resolution images to support detailed analysis of circuit boards and components. Our systems, such as the XSCAN-A Series, are ideal for evaluating solder joints, verifying PCB (printed circuit board) integrity, and locating defects that are invisible through surface-level inspection. Many models include automated void detection and 3D computed tomography (CT) rendering for enhanced quality control..

Battery X-Ray Inspection Systems for EV and Energy Storage Applications

X-ray technology for non-destructive imaging to detect internal flaws in cells, modules, and full battery packs—without dismantling or damaging them. These systems, including options like the XSCAN-9000 Series, can visualize critical components like electrodes, separators, and internal wiring, helping ensure proper assembly, performance, and safety. Ideal for electric vehicle (EV) and energy storage manufacturers, systems are available for manual or fully in-line processing.

Semiconductor Failure Analysis X-Ray Inspection Equipment

Our industrial x-ray inspection equipment offers ultra precise imaging to identify micro-level defects in semiconductors, including cracks, voids, delaminations, and wire bonding issues. Whether you’re working with wafers, packaged devices, or microchips, we provide open or closed tube options based on your resolution requirements..Advanced systems like the XSCAN-H Series play a critical role in catching early-stage failures before they escalate—safeguarding production lines from costly downtime and ensuring consistent quality.

Large-Area Industrial X-Ray Inspection Equipment for Aerospace and Heavy Components

For heavy industry, including aerospace, automotive, industrial manufacturing, and construction, we offer high-resolution x-ray inspection equipment, such as the XSCAN C Series, which is built to handle larger and more complex components.These systems provide advanced capabilities like 4-axis travel, high KV output, and CT scanning up to 500mm, making them ideal for the precise inspection of structural panels, casting, and assembled systems.

X-Ray Imaging Examples & Applications

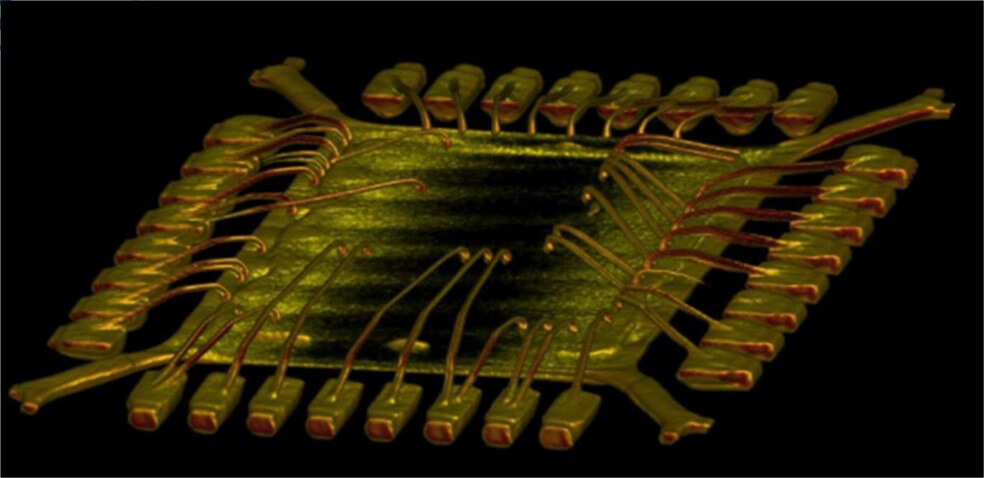

X-ray inspection of a wire bonded chip for structural analysis.

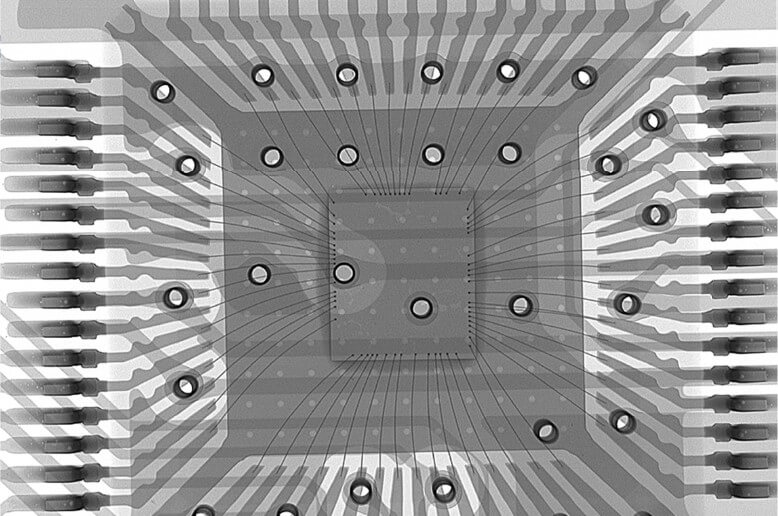

High-resolution scan of chip wire bonds

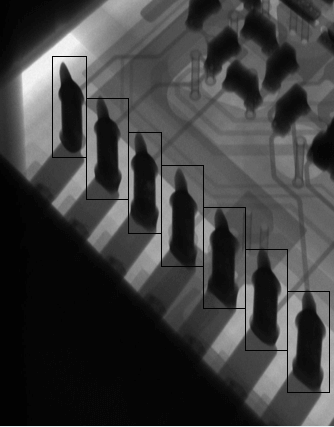

Internal view of a PCB using x-ray inspection equipment

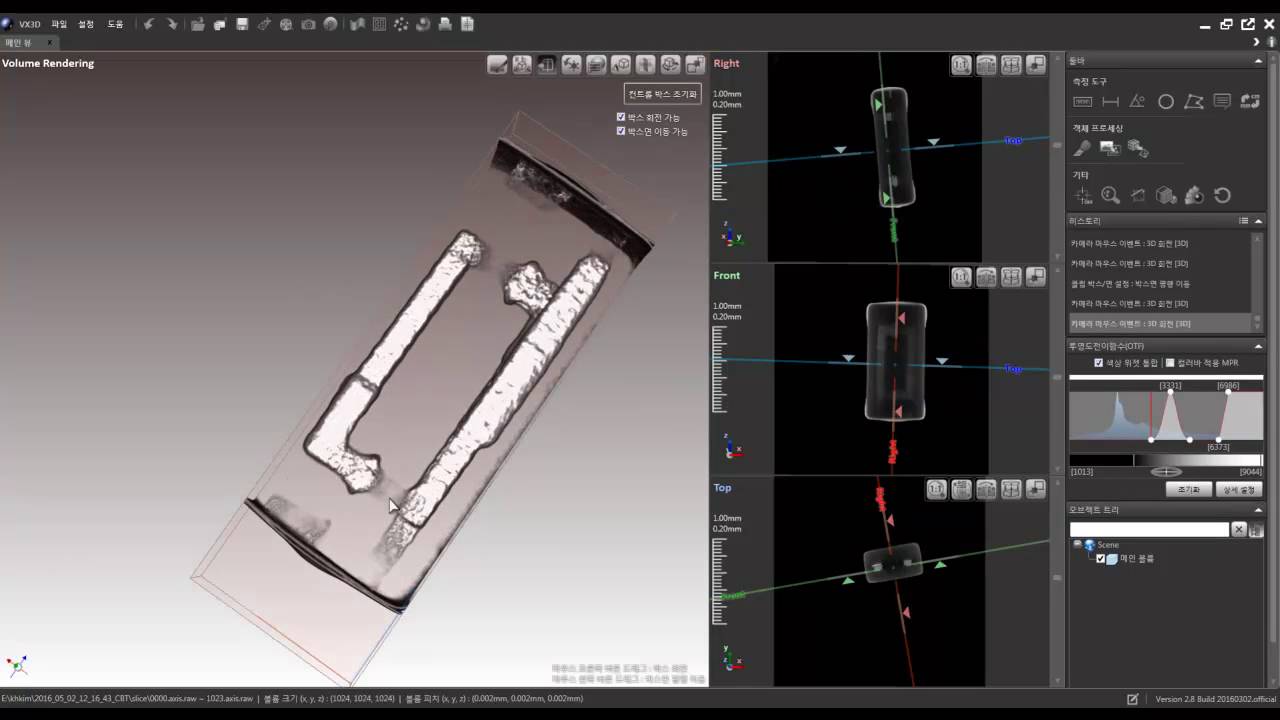

Inspection of a capacitor using high-resolution x-ray imaging

Below are sample imaging results from our advanced industrial x-ray inspection systems. These examples showcase the high-resolution, non-destructive imaging capabilities used to analyze PCBs, wire bonding, chips, and capacitors across electronics and semiconductor applications.
